Product Description

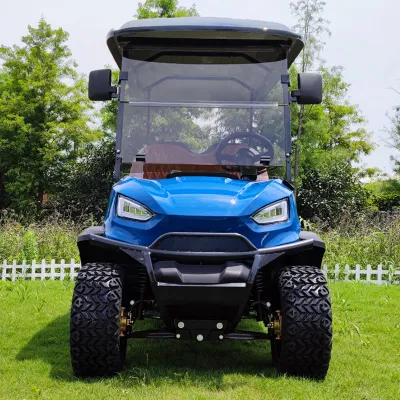

LS2040ASZ is a 6 passenger 72v battery 4x4 hunting golf cart dune buggy, it's powered by lithium battery and 72V AC motor. The rear flip flop seat can be either used for people moving or cargo delivery.
The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..
| SPECIFICATIONS OF 6 passenger 72v battery 4x4 hunting golf cart dune buggy LS2040ASZ | |||
| Key Components | Controller | 350A/450A AC Controller | |
| Motor | 4KW/5KW/7KW AC motor | ||
| Battery | 72V126AH/84ah Lithium Battery | ||
| Performance and Dimensions | Passenger Capacity | 6 (4+2) | |
| Range (Loaded) * | 80-90kms | ||
| Max.speed | 32-40km/h | ||
| Min. Turning Radius | 4.7m | ||
| Max. Gradeability | 20%-30% | ||
| Max. Loading Weight | 480kgs | ||
| Net Weight | 550kgs | ||
| Overall Dimensions | 3600X1350X2100mm | ||
| Body and Frame | |||
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | ||
| Body and Roof | PP plastic front body and rear body; FRP roof | ||
| Windshield | Organic plastic windshield, split | ||
| Roof supports | Carbon Steel, powder coated | ||
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | ||
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | ||
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | ||
| Side trim | Plastic | ||
| Sider mirror | 2pcs, foldable | ||
| Electric System | |||
| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | ||
| Backup Buzzer | 12V | ||
| Digital meter | LCD Screen, with speedometer, odometer, battery power meter, and various indicators | ||
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A | ||
| Steering, Brake, Transmission and Suspension | |||
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Brake system | 4 wheels hydraulic front disc rear drum brake, foot activated parking brake | ||
| Accelerator | Stepless speed change | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio12.49:1 | ||
| Suspension system | Front MacPherson independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber | ||
| Wheel & Tyre | 12x7 aluminum rim & 23*10.5-12 off road Tire | ||
Golf carts, also known as electric golf car and electric golf buggy, are environmentally friendly passenger vehicles specially designed and developed for golf courses. Golf buggy can also be used in resorts, villas, garden hotels, tourist attractions, etc. From golf courses, villas, hotels, schools to private users, it will be a short-distance transportation.
Detailed Photos
The first company in China who specialized in supplying lithium battery powered 72V AC system electric club car golf buggy. It gives more power, longer range, longer life span, cheaper life cost.....
LG pouch cells made lithium ion battery pack.
72V/126Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation.
4000 times life cycles based on 99% DOD.
3 Years warranty to be provided!
Lower life cost, you are deserved to have!
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.
Very Powerful and Maintenance Free AC motor.
Motor power varies from 4KW, 5KW and 7.5KW.
With 7.5KW motor, the climbing ability can be 35%.
High quality rear end with aluminum cage, silent, durable and no oil leaking
Details Make Difference
Optional Accessories For Choose
Let us know if you want anything specially!
Packaging and Loading
| Container loading qty | Disassembled (with top basket, front basket, front bumper) | Disassembled (without top basket, front basket, front bumper) |
| Qty/20' | 4units | 4units |
| Qty/40' | 10units | 12units |
| Qty/40'HQ | 14units | 15units |
Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
Suzhou Lexsong Electromechanical Equipment Co.,Ltd is specialized in supplying various electric vehicles including 2-wheel electric vehicles, 3-wheel electric vehicles and 4-wheel electric vehicles. The 2-wheel electric vehicle includes electric bike, electric scooter, electric skateboard and electric motorcycle. The 3-wheel electric vehicle includes passenger mover and cargo delivery tricycle. The 4-wheel electric vehicle includes golf cart, lifted car, utility car, sightseeing car, industrial vehicle,etc.. Besides the electric vehicle, Suzhou Lexsong also provides parts and accessories for above electric vehicles.
Electric vehicle has become more and more popular, and more and more important, we believe it will change people's life significantly. We Suzhou Lexsong are ready to change people's life together with you.
More than 12 years experiencein electric vehicle business
Suzhou Lexsong has been in electric vehicle business for more than 12 years, can provide valuable suggestion and support to your purchasing and your business.
3 Production Lines with Production Capacity of 15000 units yearly
Our factory has 3 production lines:
one line for golf carts and its variants;
one line is personal carrier, sightseeing bus and their variants;
one line is for various customized vehicles.
We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
18x7x360 Technical Support
We provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.
In the life-time of the vehicles or maximum within 5 years we stop the production of any model, we still supply the spare parts for after service.
Flexible Payment Terms
We offer different payment terms to different customers according to customer's special request, in order to support your business.
If you want to know more about our electric golf carts, please free feel to contact us!
